510E1A48F416PC Honeywell
Stock Qty: 0
Prefer to order through one of our trained sales representatives?
We accept Visa, Mastercard and American Express on domestic orders (USA and Canada)
Description
510E Series mechanical encoder, 4-bit: 16 cycles per revolution, 16 detents per rev., PC type C-30 terminals

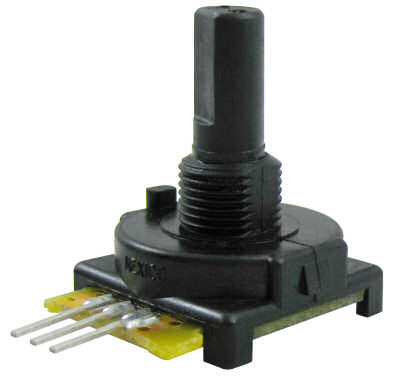

Representative picture
Datasheets
Tech Specs
| Mounting Style | PC Board, Through Hole, Panel, PCB |
| RoHS | Compliant |
Series Description
The 510E Series products are manually operated, rotary, mechanical encoders that provide a two-bit gray code output for relative reference applications and a four-bit gray code output for absolute electrical reference applications.
The "L" channel leads the "R" channel by 90° electrically in the clockwise position. This series has continuous electrical travel and has a rotational life of more than 100,000 shaft rotations with a positive detent feel.
These small encoders are commonly used in limited-space, panel-mounted applications where the need for costly, front-panel displays can be completely eliminated. Digital gray code outputs eliminate the need for A/D converters.
Features
- Resolution up to 36 positions provides high resolution
- Wide operating temperature range of -40 °C to 105 °C [-40 °F to 221 °F] helps minimize performance issues
- Horizontal or vertical mounting provides flexibility in the application
- Digital grey code eliminates need for A/D converters providing a cost-effective solution
- Rotational torque provides consistency
Typical Applications
- Industrial:
- Robotics
- Irrigation controls
- Audio/visual equipmentMedical:
- EGK and defibrillation machines
About
The Honeywell part 510E1A48F416PC is distributed by Electrol. The product that you are looking to replace may be brand labeled Microswitch, Hobbs, Honeywell, Data Instruments, Pepperl-Fuchs, Sensym, Senasys, Sensotec or Honeywell-Yamatake, all of which are trade names or previous joint ventures between Honeywell and other partners. The Micro Switch brand is a trade name of Honeywell Sensing & Control headquartered in Freeport Illinois and with manufacturing facilities worldwide including the USA, Mexico, France, Germany, the UK, China and Korea. Electrol has been a distributor of Micro Switch products since 1970.
Honeywell Sensing & Control is a world leader in electro-mechanical switching devices for industry, aerospace, medical and defense. The product line up now also includes sensors for pressure, force, humidity and temperature. Electrol stocks a broad range of Honeywell products for immediate shipment including switching devices for hazardous locations, hermetically sealed switches, pressure transducers and wide range of limit switches for virtually every application.
