PVA375P6Q Banner
Stock Qty: 43 (in stock)
Request a quote or buy online today.
Prefer to order through one of our trained sales representatives?
We accept Visa, Mastercard and American Express on domestic orders (USA and Canada)
Description
PVA Series: 375mm array pair - Emitter/Receiver..Range: 2 m; Input: 12 to 30V dc..Output: 1 PNP (on receiver)..Quick-Disconnect Connector
ID Number: 52915

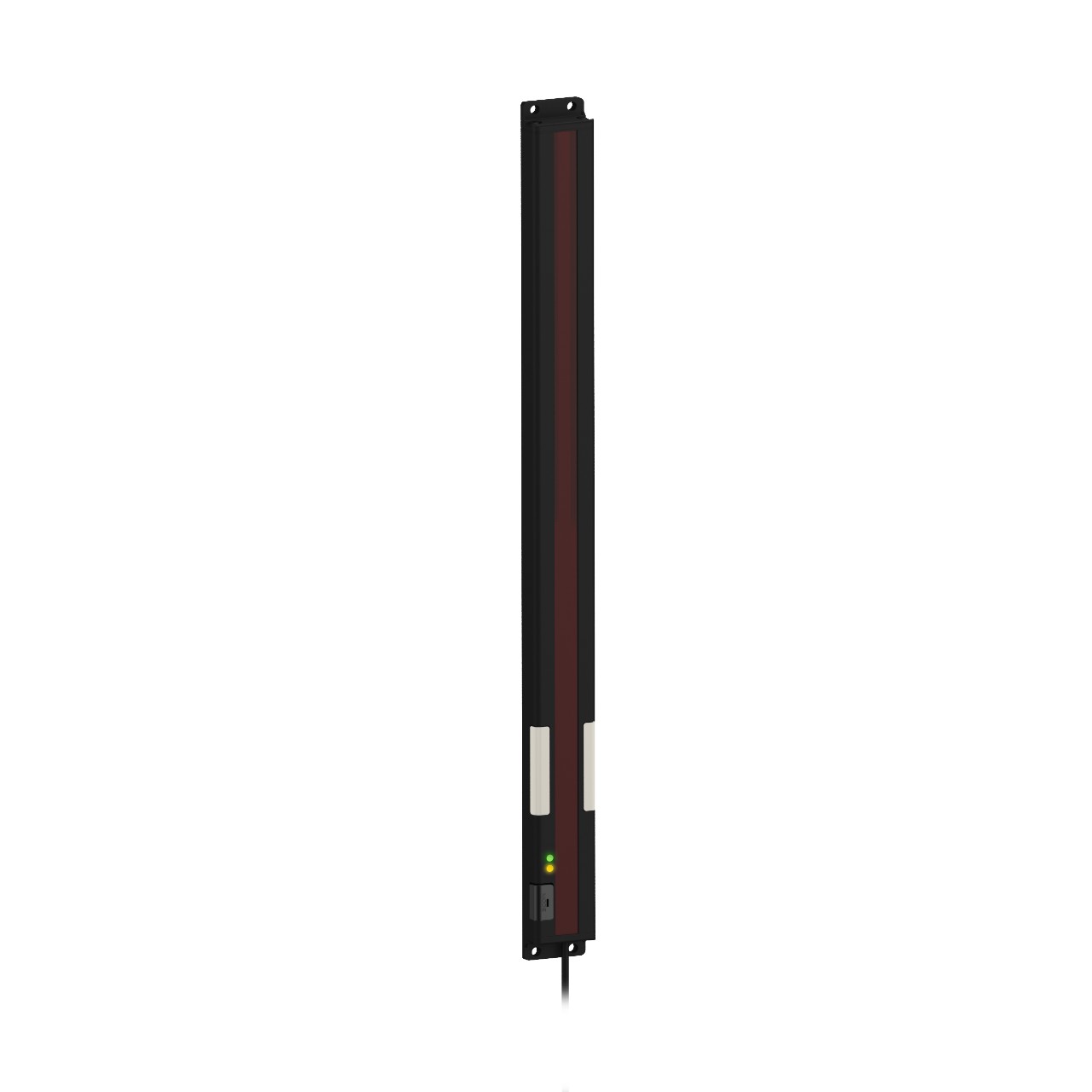

Representative picture
Datasheets
Tech Specs
| Sensing Mode | Opposed Emitter/Receiver Pair |
| Housing Style | Array |
| Primary Housing Material | Aluminum |
| Product Type | Actuator |
| Function | Optical |
| Connection Type | Pigtail QD |
| Cable Length | 150mm |
| Number of Pins | 4 |
| Operation | Normally Open/Normally Closed |
| Supply Voltage | 12-30V DC |
| Output Type | PNP |
| Max Sensing Distance | 2000mm |
| Sensing Array Length | 375mm |
| Size/Length | 416.6mm |
| Beam Spacing | 25mm |
| Number of Beams | 16 |
| Environmental Rating | IP62 |
| NEMA Rating | NEMA 2 |
| Max Op. Temp. | 50°C |
| Sensing Resolution | 35mm |
